    Customizable 0.071mm* 250 Strands USTC Silk Covered Insulated Litz Copper Wire

    Ask Lasest Price
    Brand Name : RVYUAN
    Model Number : USTC
    Certification : IEC/NEMA/JIS/RoHS/ISO
    Price : Negotiation
    Payment Terms : T/T/ Paypal
    Supply Ability : Satisfy your demand
    Delivery Time : 2-15 workding days
    • Product Details
    • Company Profile

    Customizable 0.071mm* 250 Strands USTC Silk Covered Insulated Litz Copper Wire

    Customizable 0.071mm* 250 Strands USTC Silk Covered Insulated Litz Copper Wire
    Product Specifications
    AttributeValue
    Diameter0.071mm
    Temperature155
    CertificationIEC/NEMA/JIS/RoHS/ISO
    ConductorCopper
    Strands250
    Breakdown voltage1300
    InsulationUEW
    Product Description

    Our company understands the importance of supporting startups and small businesses. We offer a small, customizable ordering service, enabling you to order the quantity of silk covered litz wire you need without the burden of excessive inventory. This flexibility allows you to bring innovative ideas to life while maintaining cost-effectiveness. Our team is committed to working with you throughout the entire process, from initial design to final production, to ensure you receive a high-quality product that exceeds your expectations.

    Technical Specifications
    ItemTechnical requestsTest value 1Test value 2
    Conductor Diameter (mm)0.076-0.0840.0790.080
    Single wire diameter (mm)0.071±0.0030.0680.070
    O.D. (mm)Max. 1.851.571.68
    Resistance Ω/m (20℃)Max. 0.011960.018150.01812
    Breakdown Voltage V95031003000
    Pitch mm29± 5
    No. of strands250

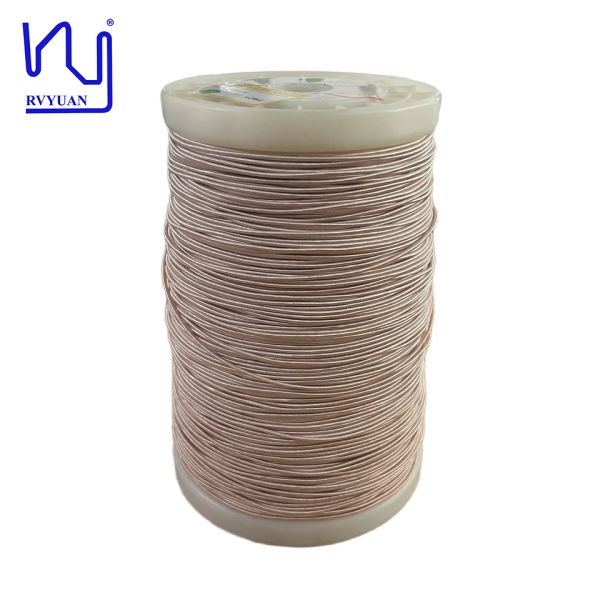

    2UDTC-F 0.071mmx250 Natural Silk Covered Litz Wire product photo
